What does a smart glass transformer actually do?

Your wall outlet delivers 110–120V — far more than PDLC needs. The transformer steps that down to 60V AC, the voltage that aligns the liquid crystals and turns the glass clear. No transformer, no switching.

How many transformers does my project need?

One per circuit of panels, sized to the total film area it drives. A typical bathroom or office takes a single unit; whole-floor projects run several circuits. We calculate this during the site survey so nothing is under-powered.

Can you replace the transformer on an existing system — even one we didn't install?

Yes. If your smart glass stopped switching, a failed transformer is the most common cause and usually the cheapest fix. We diagnose, supply the right unit, and swap it — see our smart glass repair service.

Where does the transformer go? Will I see it?

Concealed — in the wall cavity, ceiling, or a nearby cabinet, with the low-voltage wiring hidden inside the frame. You see glass and a switch, nothing else.

Smart Glass Transformers | 60V PDLC Power

The part nobody sees — and nothing works without

Every PDLC system — smart film and smart glass alike — runs on low-voltage power. The transformer is what makes that safe and reliable:

Steps household power down to 60V AC, the operating voltage of the PDLC layer
One per circuit, sized to the square footage of glass it drives
Concealed installation — wall cavity, ceiling, or cabinet, never visible

Illustration: a demo wall with three switchable glass panels — one clear, two frosted — wired to a compact transformer with a wall switch and remote — The whole system on one wall: panels, low-voltage wiring, the transformer, wall switch, and remote. (Illustration)

More than one way to flip the glass

The transformer circuit doesn't care what triggers it: a dimmer, remote control, mobile app, touch panel, smart-home system (Lutron, Crestron, Control4), or voice (Alexa, Google Home). Pick one or combine several — a wall switch for everyday use, the app for schedules, voice for showing off.

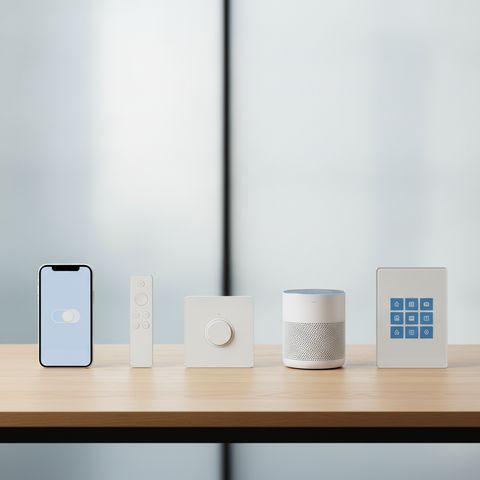

Illustration: the control family — phone app, remote, wall dimmer, smart speaker, and touch panel — in front of frosted smart glass — App, remote, dimmer, voice, touch panel — every one drives the same circuit. (Illustration)

The lineup: 15W to 500W

Ten models, one job. Every unit is a Smart View AC power supply and includes the receiver and remote — the dimmable models add a wall switch with variable opacity control.

Tell us your glass sizes and we pick the right unit — the "covers up to" column shows each model's maximum film area.

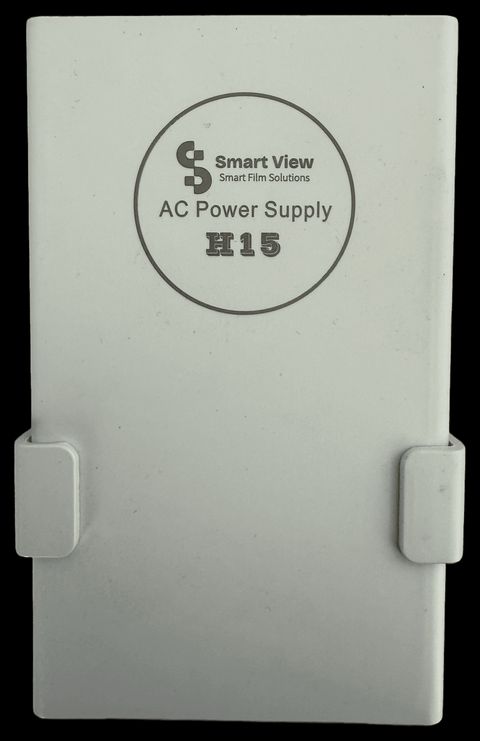

Smart View H15 AC power supply for PDLC smart film — AC power supply (H15)

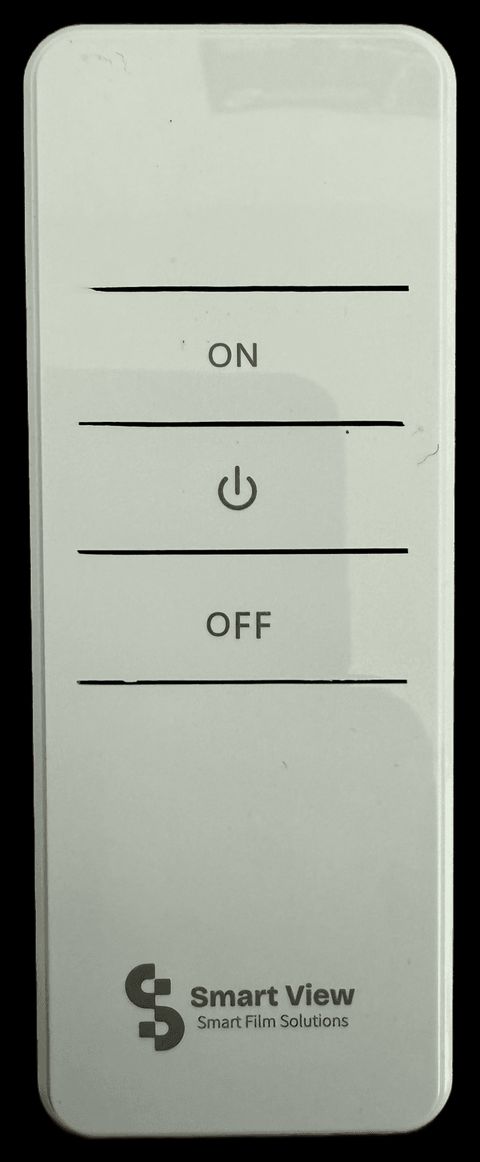

Smart View programmable remote control included with every transformer — Included remote

Model	Max power	Covers up to*	Input	Output	Frequency	Dimensions	Price**
15W Transformer	15W	23 sq ft	110V AC	60V AC	50/60 Hz	L 4 7/8" x W 3" x H 1"	$210
30W Transformer	30W	46 sq ft	110V AC	60V AC	50/60 Hz	L 6 1/4" x W 4" x H 1 1/2"	$235
50W Transformer	50W	76 sq ft	110V AC	60V AC	50/60 Hz	L 7" x W 4 1/4" x H 1 3/4"	$258
100W Transformer	100W	153 sq ft	110V AC	60V AC	50/60 Hz	H 7" x W 4 3/8" x D 1 3/4"	$318
200W Transformer	200W	307 sq ft	110V AC	60V AC	50/60 Hz	L 5 3/8" x W 4 3/4" x H 1"	$378
300W Transformer	300W	461 sq ft	110V AC	60V AC	50/60 Hz	L 6 3/4" x W 5 1/4" x H 3 1/2"	$420
400W Transformer	400W	615 sq ft	110V AC	60V AC	50/60 Hz	L 6 3/4" x W 5 1/4" x H 3 1/2"	$460
500W Transformer	500W	769 sq ft	110V AC	60V AC	50/60 Hz	L 6 3/4" x W 5 1/4" x H 3 1/2"	$480
Dimmable 100W Transformer with dimmable wall switch	100W	153 sq ft	110V AC	60V AC	50/60 Hz	—	$576
Dimmable 200W Transformer with dimmable wall switch	200W	307 sq ft	110V AC	60V AC	50/60 Hz	—	$636

* Maximum smart film area per unit. ** Per unit, includes receiver and remote.

Connections: simple by design

Every unit carries the same straightforward panel — your electrician (or our install team) will feel at home immediately:

110VAC IN — standard wall power in
POWER OUTPUT — 60V AC out to the film's busbar wiring
SWITCH — dry-contact port for a wall switch or smart-home relay
ON/OFF — manual override right on the unit

One unit drives a whole circuit of panels; the receiver pairs the included remote out of the box.

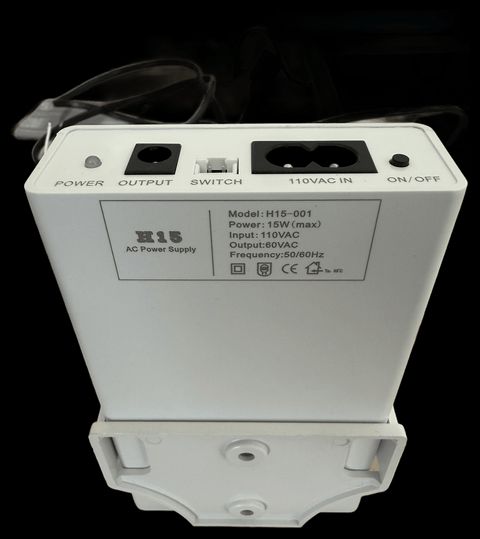

Smart View transformer connection panel: power output, switch port, 110VAC input, and on/off — The connection panel (H15 shown): output, switch port, 110VAC in, on/off.

Need help choosing? Send your glass measurements to info@smartviewsmartglass.com and we'll size the circuit for you.

Supplied with every install — or on its own

Every Smart View installation includes correctly-sized transformers (spelled out as a line item in your quote — see the cost guide). We also supply transformers separately:

Replacements for failed units on existing systems — ours or anyone else's (smart glass repair)
Material-only orders — we ship film, glass, and matched transformers nationwide, with wiring guidance for your electrician

Sizing matters more than people think

An under-sized transformer switches slowly, hums, or fails early; an oversized one wastes money. We match the unit to your exact panel area and circuit layout during the site survey — one of the reasons we quote after measuring, not before.

Request a free assessment or call (866) 728-9888 — whether it's a new system or a dead one that needs reviving.
